- Implement – (Soil Preparation)

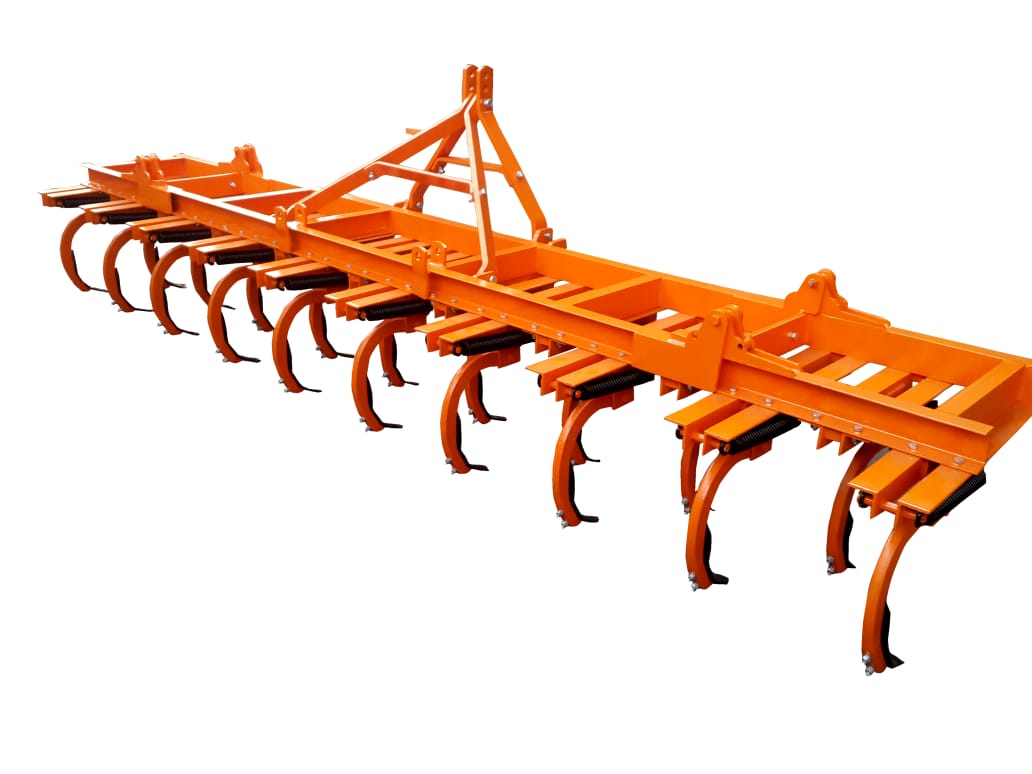

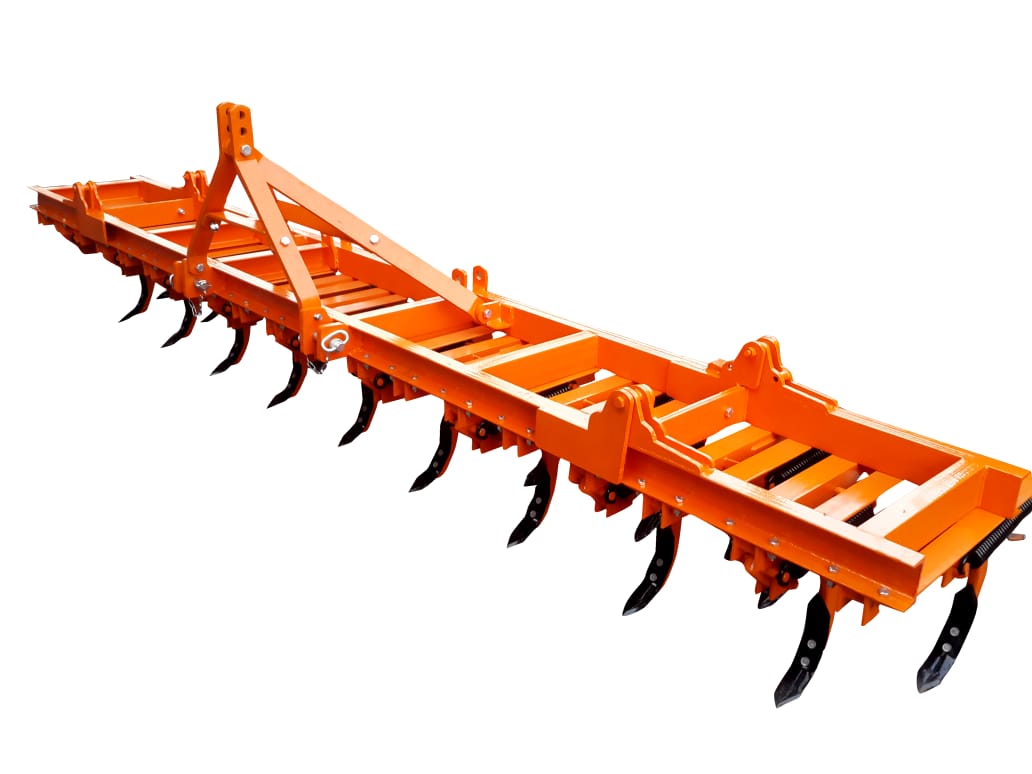

Heavy Duty Cultivator
The Double spring loaded series is the best choice for working in soils embedded with stones & stumps. The independent working of
each tine with high quality springs allows the movement of the tine in case of any obstacle leaving other tines operating at the same
depth. The prominent & authentic features loosens & aerates the soil to the adequate depth with maximum efficiency.
Specification
| Model | Spring (mm) | Tyne (mm) | Shovels (mm) | Width (mm) | Length (mm) | Height (mm) | Weight (Kg. Approx.) | Tractor Power (HP) | |
|---|---|---|---|---|---|---|---|---|---|
| Double Spring Loaded Series | |||||||||
| FB-CL-MS5 | 9.5 WD / 44 OD/27 Coil | 22×19 (Forged) | 8(EN-45) | 1205 | 834 | 930 | 140 | 20-24 | |
| FB-CL-MS7 | 1640 | 170 | 26-30 | ||||||
| FB-CL-MH9 | 10 WD / 50 OD / 28.5 Coil | 50×25 (Forged) | 2039 | 878 | 1157 | 290 | 45+ | ||
| FB-CL-MH11 | 2492 | 370 | 55+ | ||||||
| FB-CL-MH13 | 2945 | 440 | 65+ | ||||||
| FB-CL-MH15 | 3520 | 915 | 1170 | 520 | 75+ | ||||
| FB-CL-HF15 | 3520 | 540 | 75+ | ||||||
| FB-CL-HF17 | 3970 | 550 | 90+ | ||||||
