- Commercial

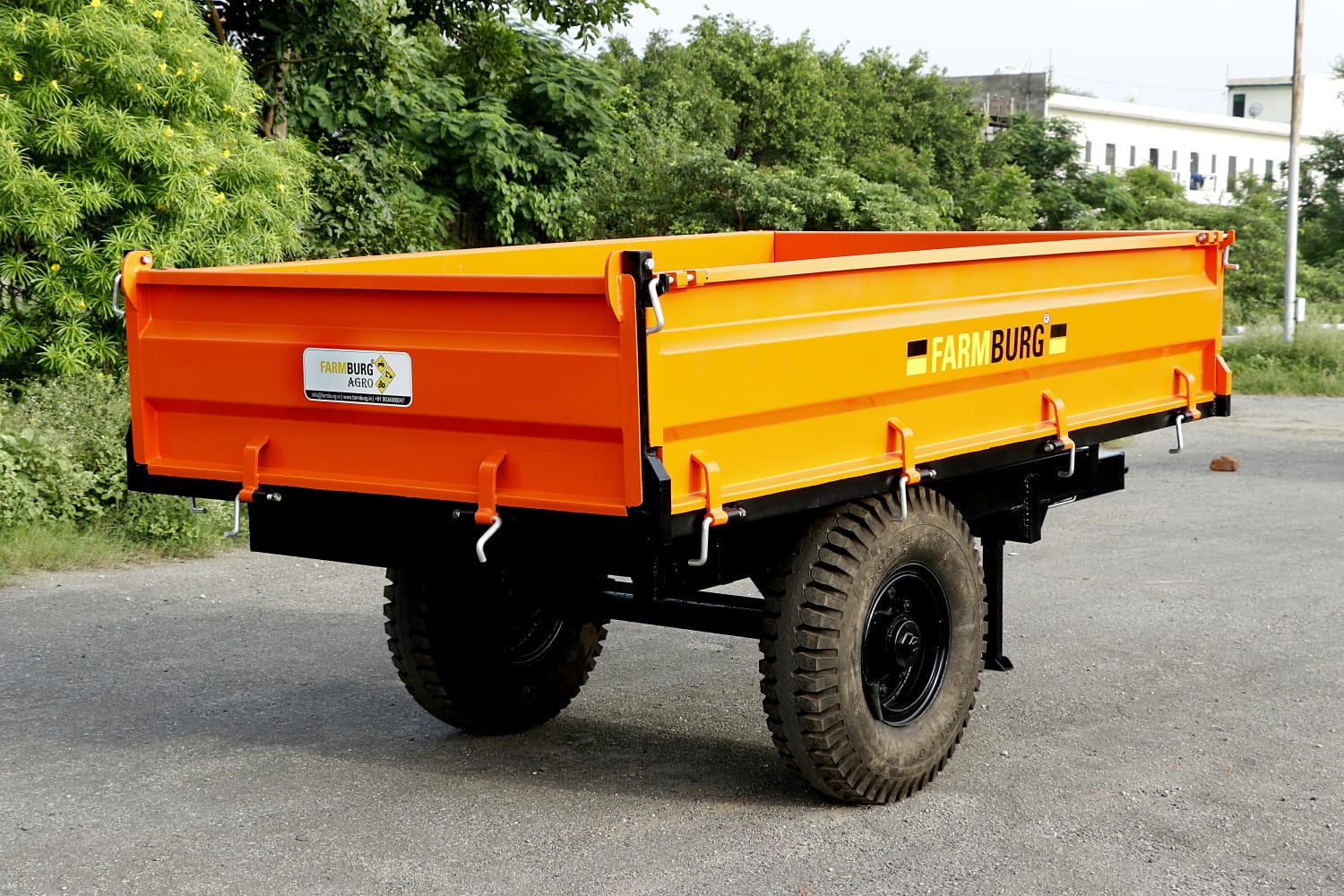

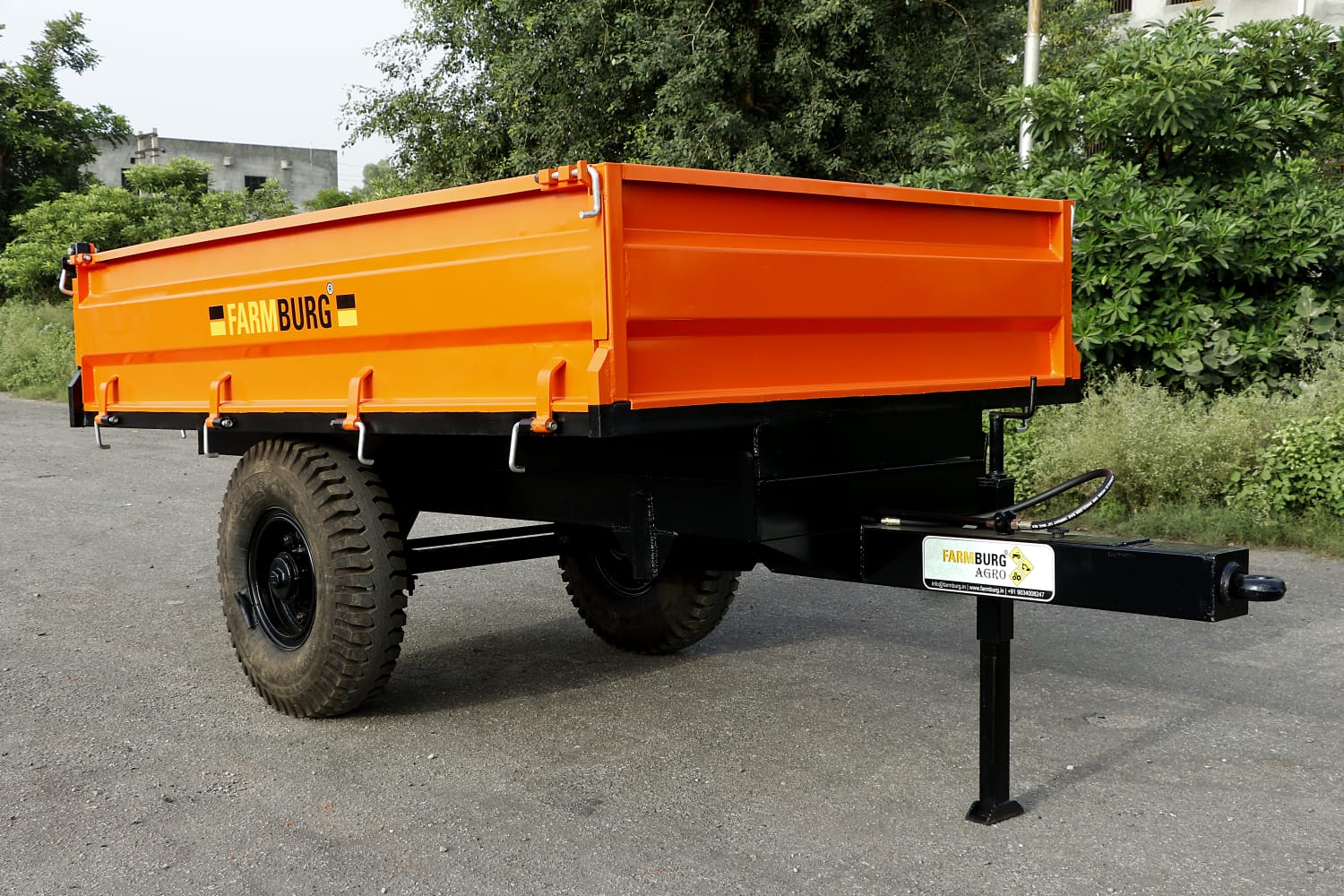

Tipping Trailer
Coming Soon
Specification
| TIPPING TRAILER | NON TIPPING | |||||||
|---|---|---|---|---|---|---|---|---|
| Model Name | FB-ITT3 | FB-ITT5 | FB-ITT8 | FB-ITT10 | FB-INT3 | FB-INT5 | FB-INT8 | FB-INT10 |
| CAPACITY | 3 TON | 5 TON | 8 TON | 10-12 TON | 3 TON | 5 TON | 8 TON | 10-12 TON |
| SIZE | 2435 X 1828 X 610 | 3048 X 1828 X 610 | 3650 X 1828 X 610 | 3952 X 1828 X 610 | 2435 X 1828 X 610 | 3048 X 1828 X 610 | 3650 X 1828 X 610 | 3962 X 1828 X 610 |
| TYRE | 2 Nos. of size 7.50 x16, 16 PR | 2 Nos. of size 9.00 x16, 16 PR | 4 Nos. of size 9.00 x16, 16 PR | 2 Nos. of size 7.50 x16, 16 PR | 2 Nos. of size 9.00 x16, 16 PR | 4 Nos. of size 9.00 x16, 16 PR | 4 Nos. of size 9.00 x16, 16 PR | |
| MAIN CHASSIS | 125 x 65 | 200 x 75 | 125 x 65 | 200 x 75 | 200 x 75 | 200 x 75 | ||
| TIPPING CHASSIS | 100 x 50 | 125 x 65 | NA | |||||
| SIDE SHEET | 2 corrugated | 2 corrugated | ||||||
| FLOOR SHEET | 4 | 4 | ||||||
| AXLE SIZE (1 NO.) | 75 square section | 90 square section | 100 square section | 75 square section | 90 square section | 100 square section | ||
| PLATFORM | table top | table top | ||||||
| TIPPER CAPACITY | 10 ton | 15 ton | NA | |||||
| LEAF SPRING | size: 70YLLX13 Leaf | 70 x 11 x 13 Leaf | ||||||
| PAINT | PU | PU | ||||||
| TRACTOR HP | 40-50 | 50-60 | 60-75 | 90 & Above | 40-50 | 50-60 | 60-75 | 90 & Above |
