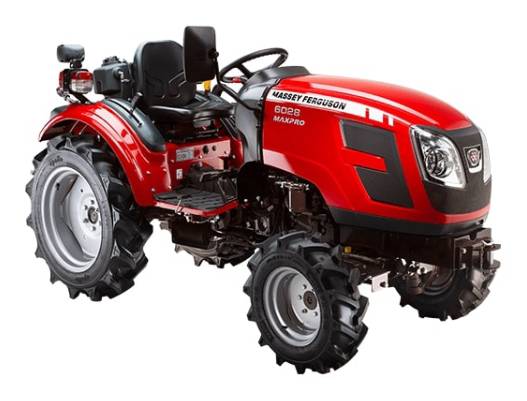

- Massey Farguson Tractor
6028
The information relating to TAFE’s products, product images, specification and availability provided on TAFE’s websites, digital and social media platforms are subject to constant revision, upgradation based on its policies and current product-line, and may not reflect the updated information. You are advised to contact corporate@tafe.com, our regional sales representative, or your nearest authorized dealer / distributor in this regard. Products listed on TAFE’s digital platforms may not be available in certain geographies and may be enhanced or discontinued without any prior notice.
Specification
| Power Range (hp Range) | 20.5 kW (28 hp) |
|---|---|
| Engine | MVS3L2-JCT |
| Cylinders | 3 |
| Cubic Capacity | 1318 cc (1.31L) |
| Fuel Injection Pump | Inline |
| Clutch Type | Single diaphragm |
| Transmission Type | Partial constant mesh |
| Number of Speeds | 9 Forward + 3 Reverse |
| Tyre Dimensions | 12.7 cm x 30.48 cm(5 x 12) Front 20.32 cm x 45.72 cm (8 x 18) Rear |
| Forward Speed @ rated RPM | 23.3 km/h |
| PTO Type | Live, Two speed PTO |
| PTO Speed | 40 RPM @ 2322 ERPM 750 RPM @ 2450 ERP |
| Hydraulics Lifting Capacity (Lower Links at Horizontal Position) | 739 kgf |
| Three-point Linkage and Controls | CAT-1, Draft with Auto Sense, position and response control. |
| Brake Type | Multi disc oil immersed brakes |
| Steering Type | Power steering |
| Electrical | 12 V 65 Ah Battery, 12 V 65 A Alternator |
| Overall Length | 2960 |
| Overall Width | 930 mm |
| Overall Height | 1290 mm |
| heelbase | 1550 mm |
| Total Weight | 980 kg |
| Fuel Tank Capacity | 23 L |
