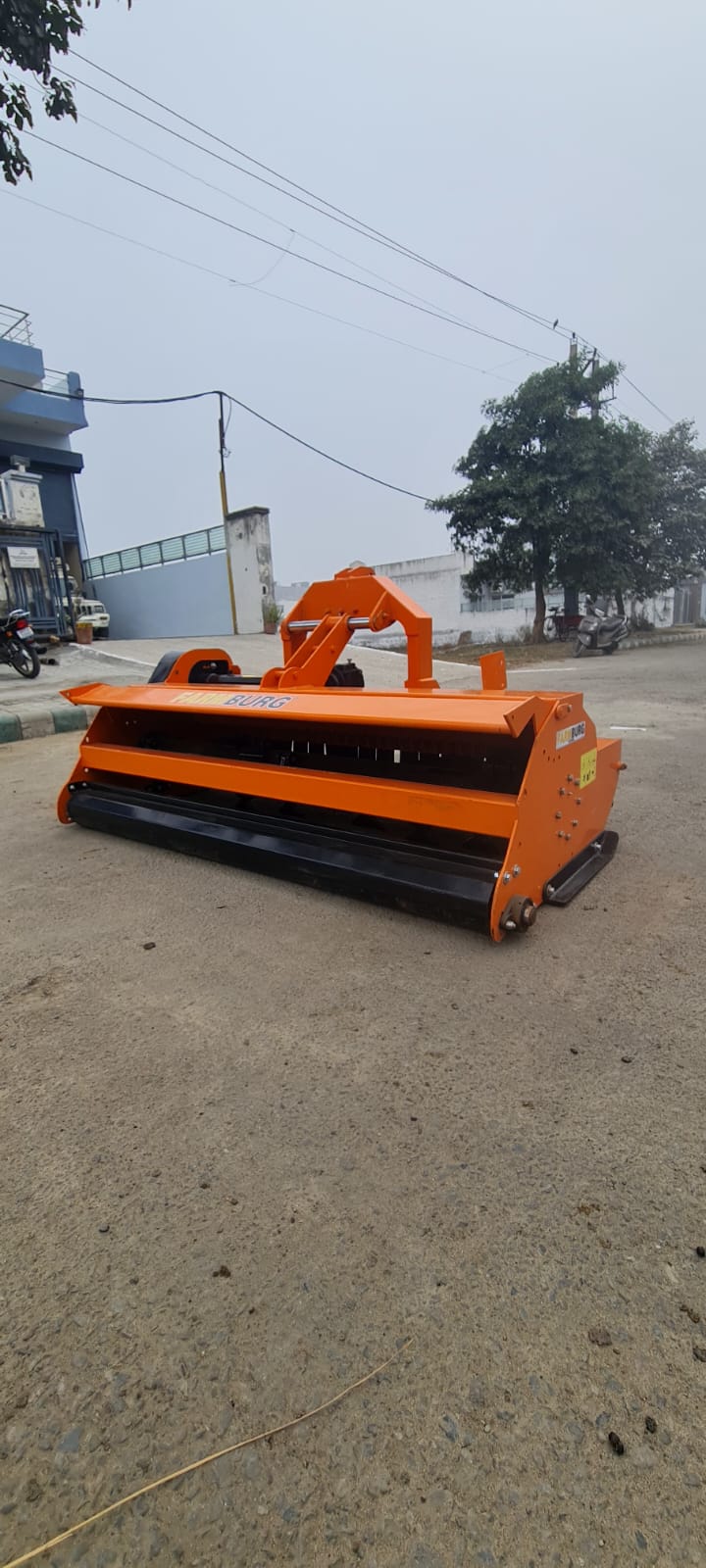

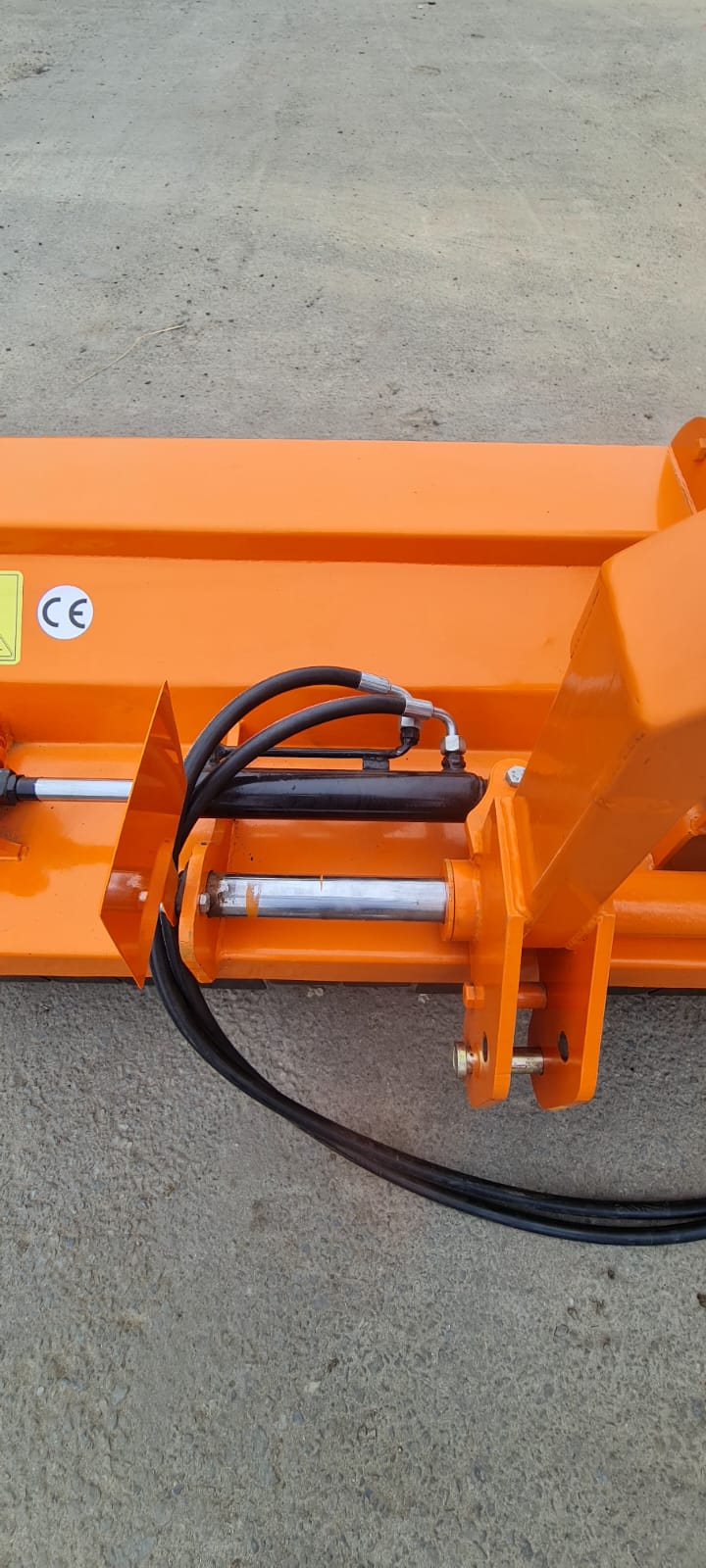

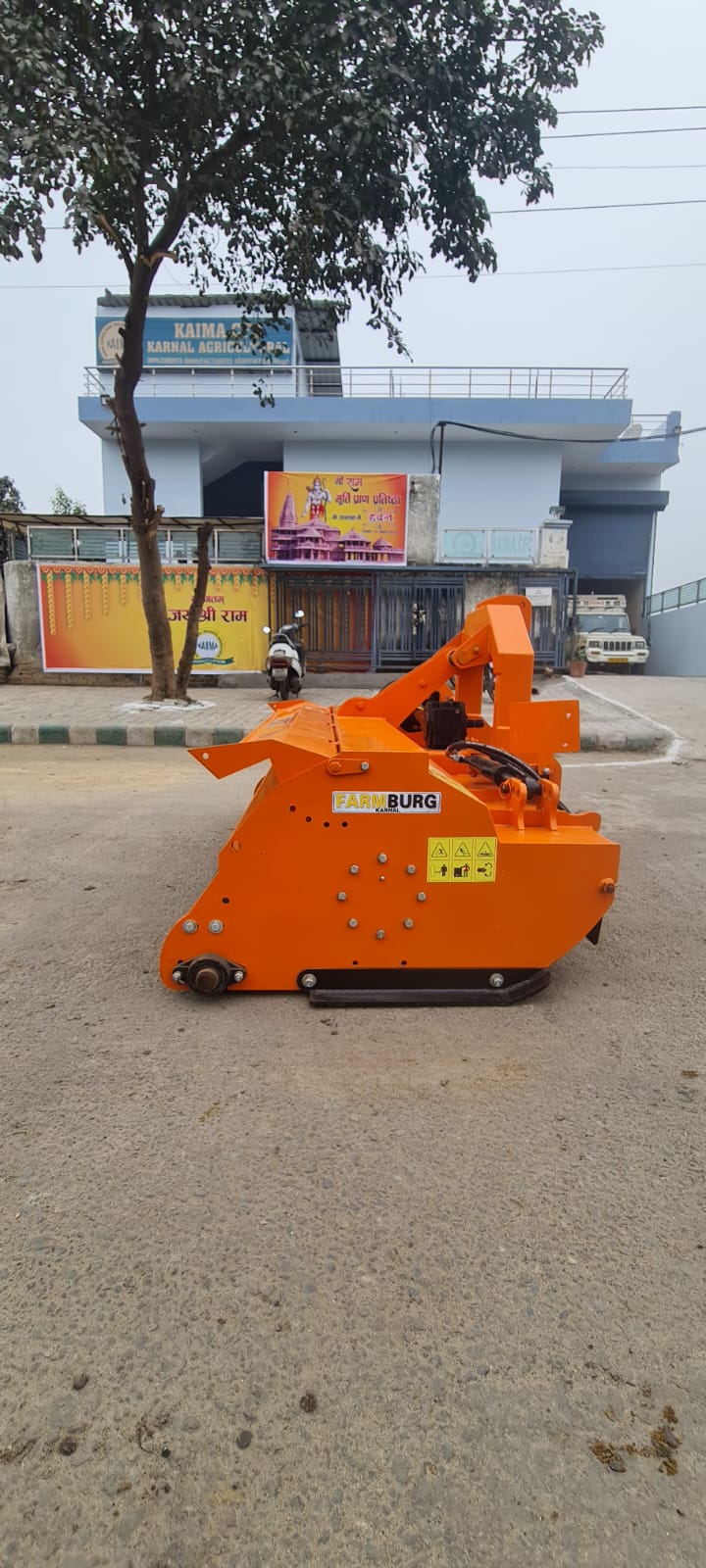

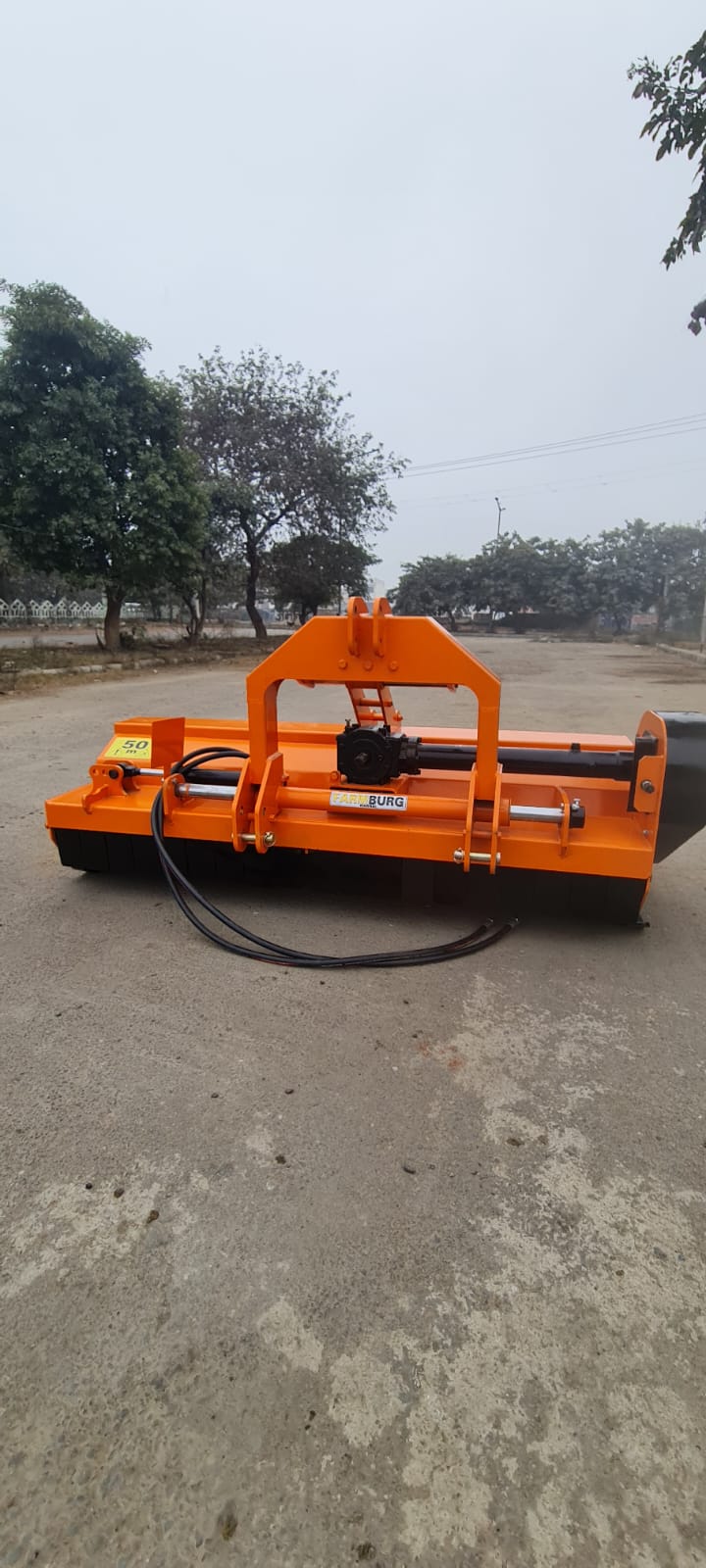

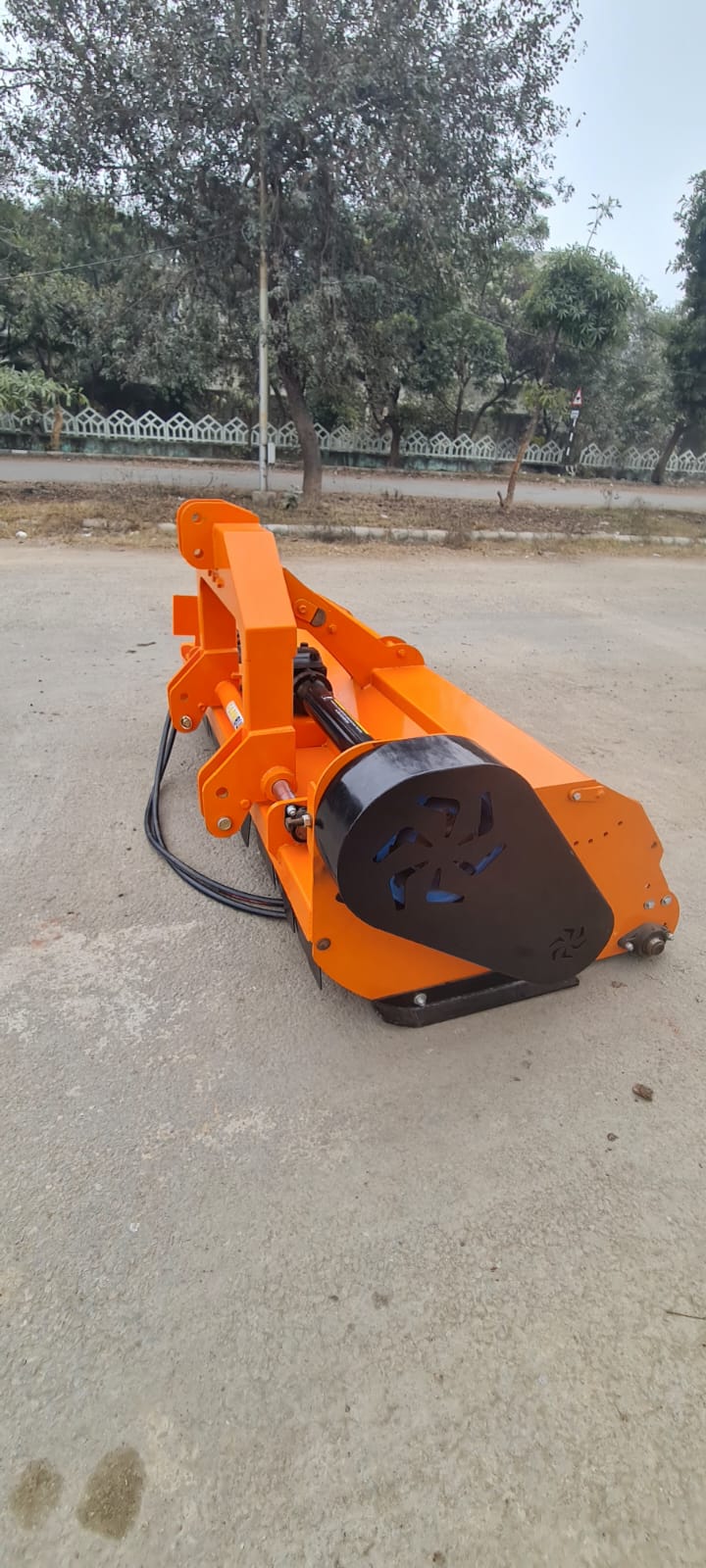

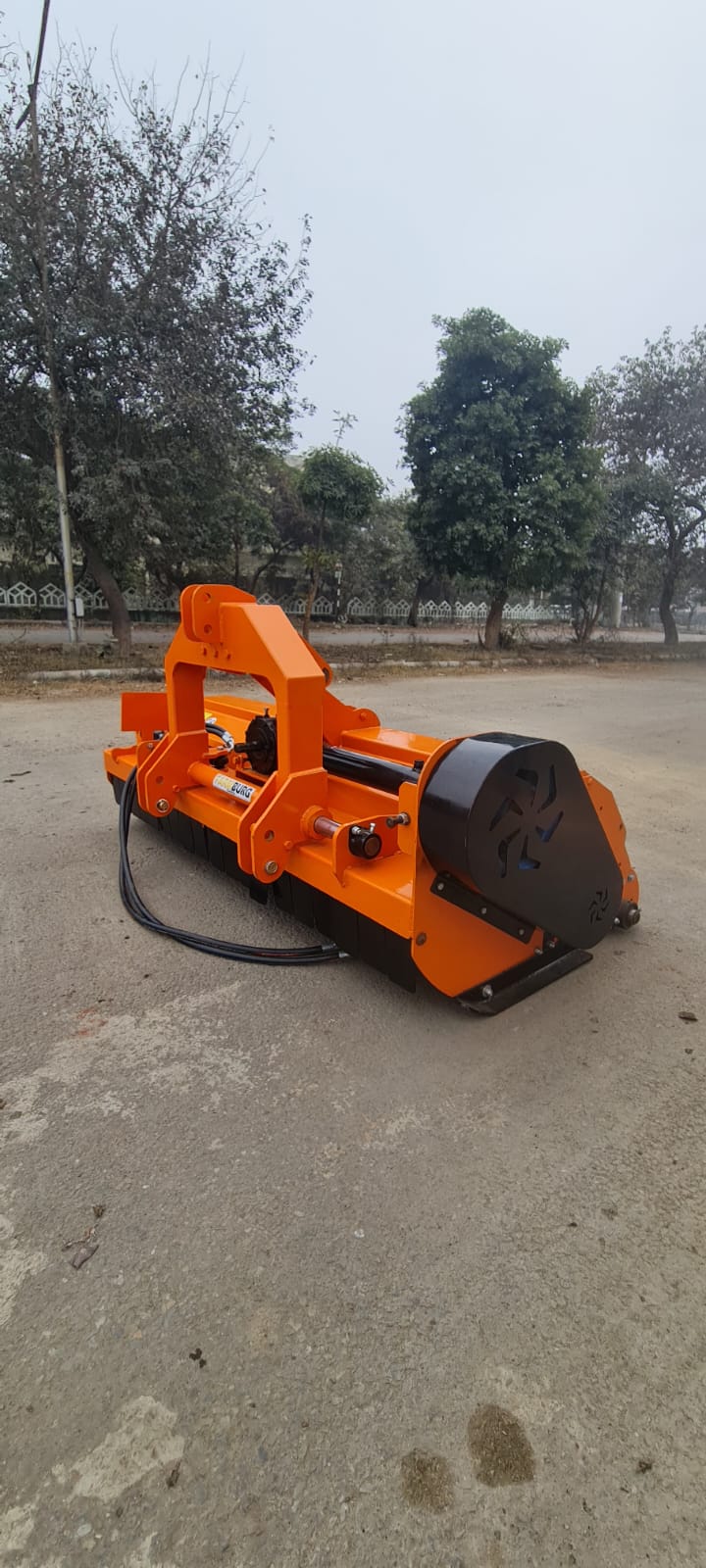

Mulcher / Slail Mower
The sturdy & robust design of farmburg mulcher helps in its efficient working in all conditions & is highly compatible to shred vineyard & orchard pruned materials, grasses bushes & crop residues.. It is a special kind of flail mower suited for heavy duty operations with its working widths varying from 1.5m to 2.5m. The finer degree cutting of the crop residues with its superficial efficiency provides best quality bio mulch which helps in significant increase of crop yield.
Specification
| Model Name | FBM5 | FBM6 | FBM7 | FBM8 |
|---|---|---|---|---|
| Working Width (mm) | 1575 | 1880 | 2185 | 2490 |
| Overall width (mm) | 1850 | 2155 | 2460 | 2765 |
| Speed of flail rotary, (RPM) | 2240 at 540 tractor PTO RPM | |||
| No. of row of flail sets on rotor | 2 | |||
| No. of blade sets on rotor | 16 | 18 | 20 | 22 |
| Type of Blades | Inverted Gamma type/ Hammer type | |||
| Rotor drum diameter (mm) | Inverted gamma type-673 Hammer type-580 | |||
| No of rows of blades on the concave | 3 (only for paddy straw) | |||
| Approx Weight (Kg) | 580 | 652 | 702 | 750 |
| Main frame sheet thickness (mm) | 5 | |||
| Side plates sheet thickness (mm) | 10 | |||
| Trailing board sheet thickness (mm) | 5 | |||
| Rear end following mechanism | Press Roller/ Wheel | |||
| Hitching Pyramid | Cat II | |||
| No. of belts | 4 | |||
| Tractor Power (HP) | 45 | 50 | 60 | 75 |
