- Implement – (Soil Preparation)

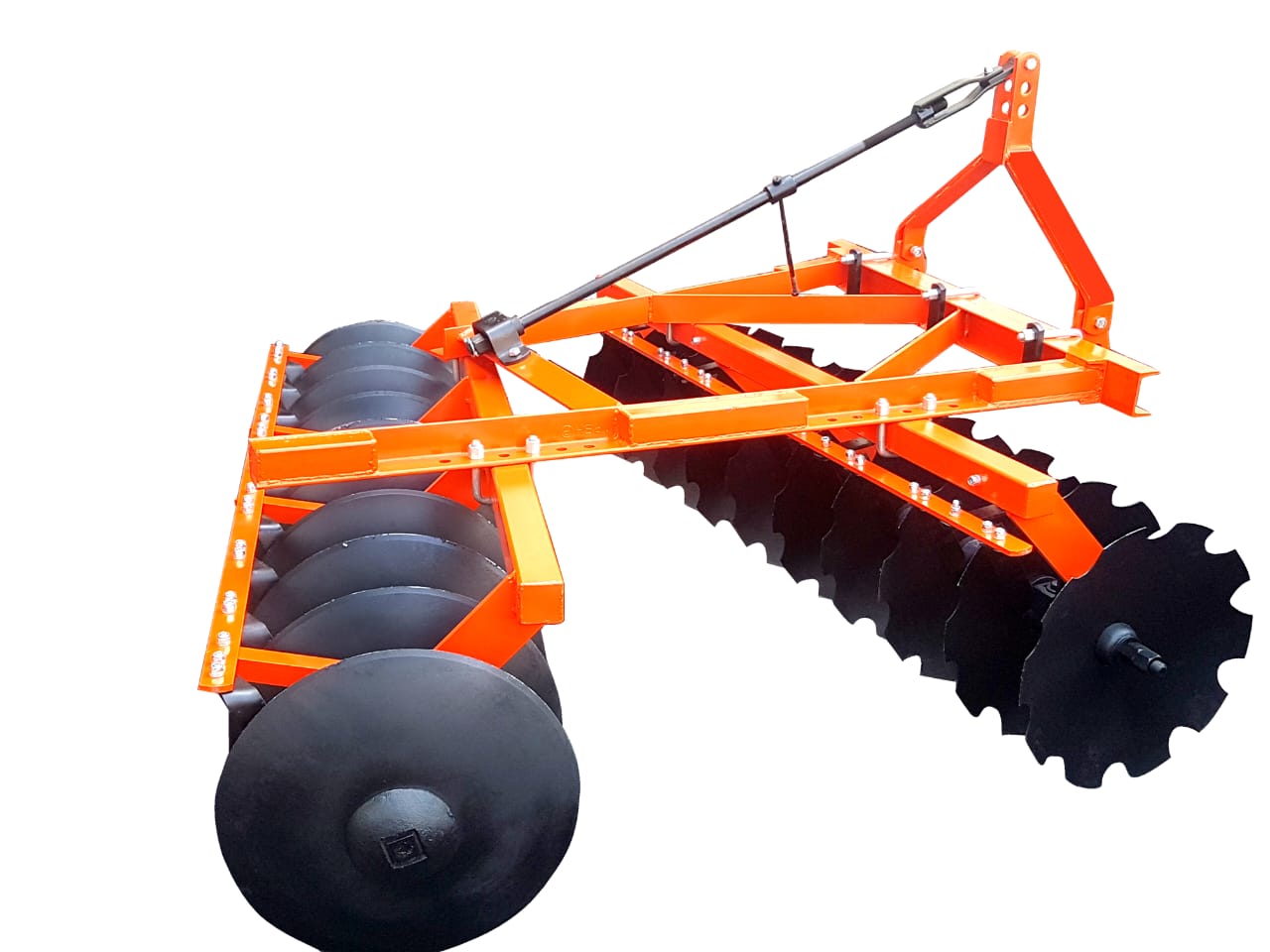

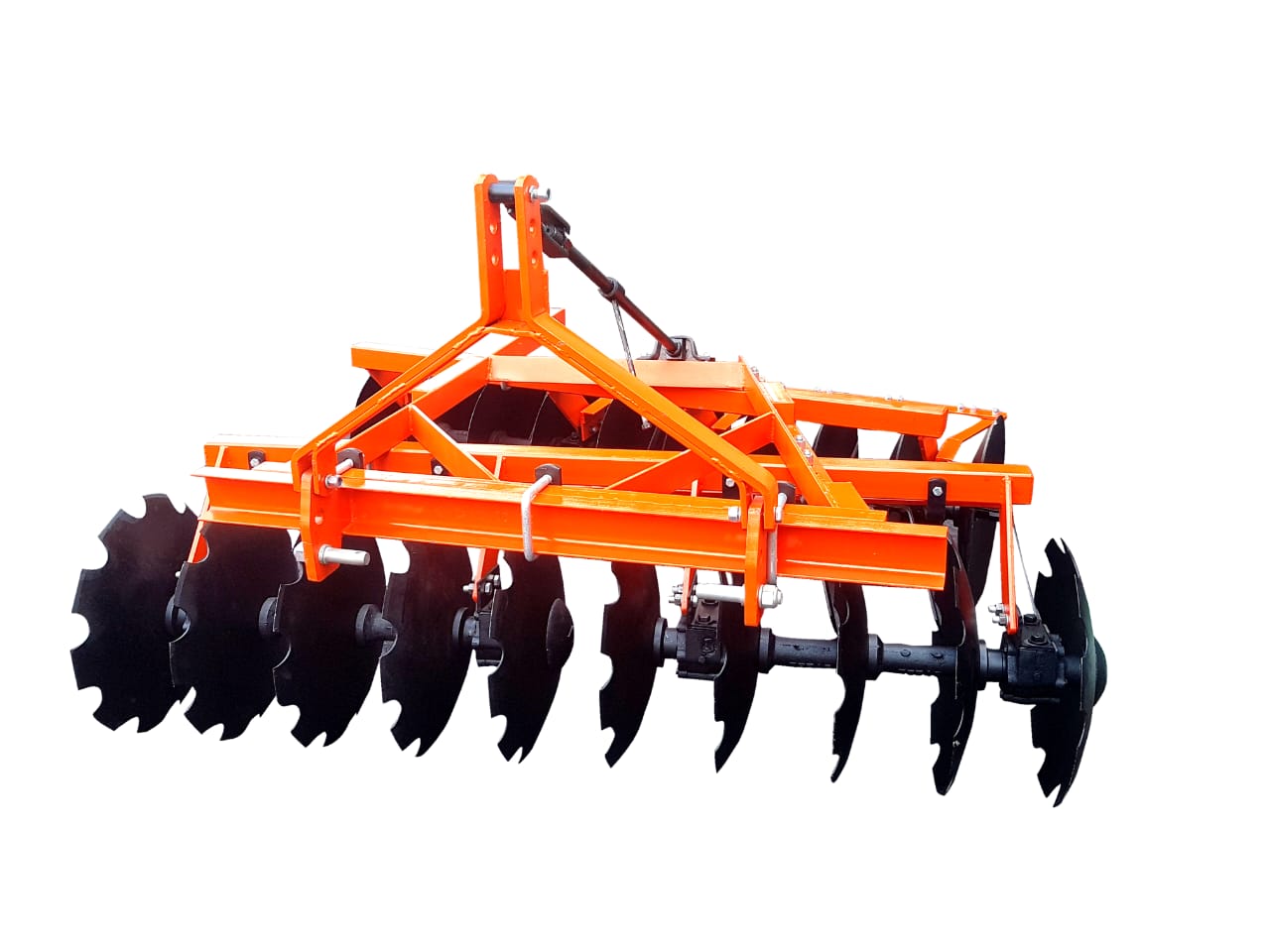

Off Set Disc Harrow
Coming Soon
Specification
| Model Name | Frame(mm) | Gang Bolt Axle Type (mm) | No. of Disc | Type of Disc | Disc Diameter (mm) | Width of cut (mm) | Disc spacing(mm) | Bearing Hubs | Weight (kg-approx) | Tractor Power (HP) |
|---|---|---|---|---|---|---|---|---|---|---|
| FB-DH 10 M | Angle 65 x 8 | 28.5 | 10 | Notched disc front gang & plain disc in rear gang | 455 | 1065 | 225 | 4 | 205 | 20-26 |
| FB-DH 12 | 75 x 10 Angle Frame with 100x 50 front channel | 31.5 (Solid sq. rod) | 12 | 560 | 1370-1420 | 228 | 390 | 30-40 | ||
| FB-DH 14 | 14 | 1585-1635 | 228 | 430 | 40-50 | |||||
| FB-DH 16 | 16 | 1798-1852 | 228 | 6 | 500 | 50-60 | ||||
| FB-DH 18 | 18 | 2018-2068 | 228 | 8 | 575 | 60+ | ||||
| FB-DH 20 | 20 | 2235-2285 | 228 | 615 | 75+ | |||||
| FB-DH 24 | 24 | 2668-2718 | 228 | 731 | 90+ |
